Product Details:
|
| Features: | High Hardness; High Corrosion Resistance; Low Density; Stability In A Wide Range Of Temperatures; Precision Machining Capability. | Material: | Alumina |
|---|---|---|---|
| Size: | Customized | Color: | White |
| Highlight: | Vacuum Hot Pressing Sintering Furnace,2300 C Hot Pressing Sintering Furnace,300KW Hot Pressing Sintering Furnace |
||

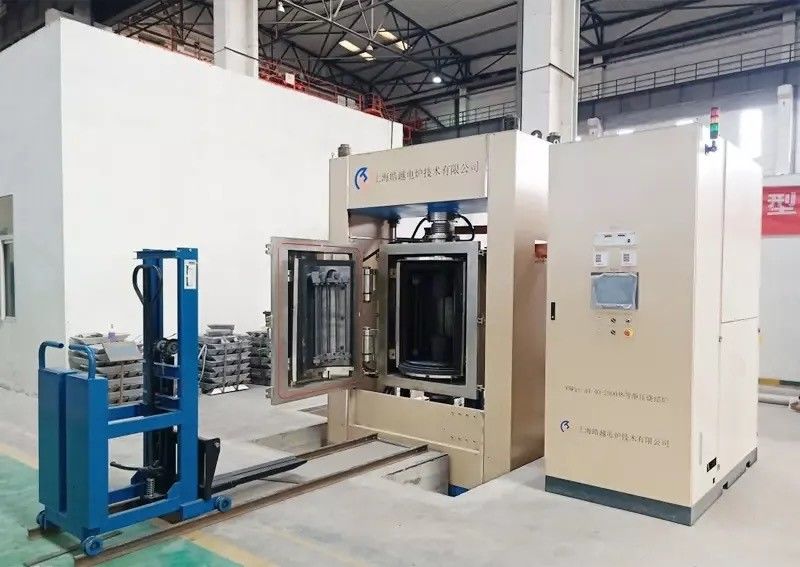

Vacuum Hot-Pressing Sintering Furnace
Technical Features:
Specification:
| P5 Vacuum Hot-Pressing Sintering Furnace | |
| Model | VHPgr-50/50-2000(P5) |
| Equipment Form | Horizontal |
| Loading method | Horizontal side loading |
| Heating Element | Graphite |
| Max.Temperature | 2300℃ |
| Working Temperature | 2200℃ |
| Max.Power | 300KW |
| Temperature Accuracy | ±1℃ |
| Max.Pressure | 2940KN(300Ton) |
| Maximum Outside Diameter of Mold | φ500x500mm(D*H) |
| Product Diameter | ≤φ250mm |
| Diameter of metal head | φ300mm |
| Max Displacement | 400mm |
| Pressing Direction | Single way pressurization ( bottom ) |
| Ultimate Vacuum | 5Pa/8.0x10-3Pa(8.0×10-2 torr/8.0×10-5 torr)Optional |
| Pressure Rise Rate | ≤2.0Pa/h |
| Gases | Nitrogen,Argon |
| Thermocouple | W-Re5/26(C-type) |
| Cooling Water Requirement | Water pressure: 0.2~0.3MPa, water flow: 30M3/ h |
| Power Requirement | VHPgr-50/50-2000(P5)Total power: 360KVA (including vacuum furnace power, vacuum generator power, cooling water power, etc.); |
Application:
