Silicon Carbide Electric Heating Element Dia 8mm High Density

1550 ℃ Silicon Carbide Electric Heating Element

Silicon Carbide Heating Elements is a kind of non-metal high temperature electric heating element. Silicon Carbide Heating Elements is made of selected high quality green silicon carbide as main material, which is made into blank, siliconization under high temperature and recrystallized. It is the most popular type of economical heating element capable of operating under hot and rigorous environments.

Silicon Carbide Heating Elements Applications

Electronic industry

Metallurgy

Al/Zn-industry

Ceramic industry

Float glass industry

Optical glass industry

Laboratory equipment

Fluorescence powder

Recommended surface load and Influences to Surfaces of the Elements in Different Operating Temperature

Following are to be provided when making an inquiry or placing an order for Silicon Carbide Heating Elements:

• Type: U
• Outer Diameter (OD): in or mm,
• Hot Zone length (HZ) (the heating section): in or mm,
• Cold Zone length (CZ): in or mm,
• Shank spacing (A): in or mm
• Overall Resistance: Ω

As an example:

U Type, OD=20mm, HZ=300mm, CZ=200mm, A=60mm, Resistance=1.84Ω
Specify as: SiC U20/300/200/60/1.84Ω

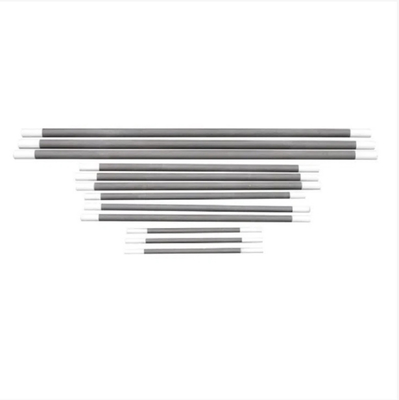

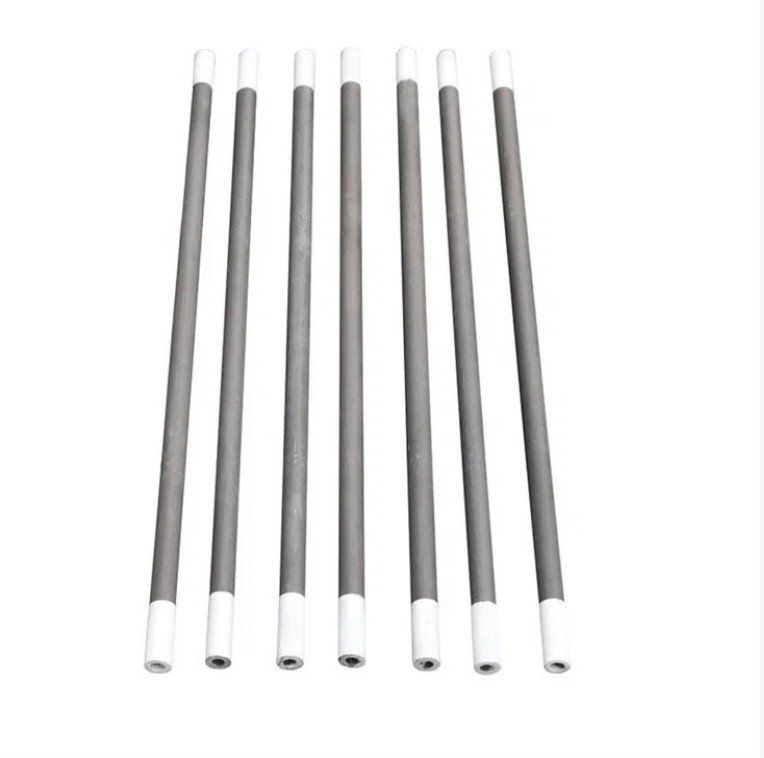

Silicon Carbide Heating Elements Pictures
