220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element

220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element
220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element

Large Image :  220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element

Product Details:
Place of Origin: CN
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element

Description
MAX TEMPERATURE:: 1700°C / 1800°C DIAMETER:: 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm
COOLING ZONE LENGTH:: 80 - 1500mm SHAPE:: L Shape
HEATING ZONE LENGTH:: 80 - 1500mm MOLYBDENUM PURITY:: 99.9% High Purity
Highlight:

High Temp Molybdenum Disilicide Heater

,

220 Volt Molybdenum Disilicide Heater

,

220 Volt Mosi2 Furnace Heating Element

High temperature Molybdenum Disilicide electric heater MoSi2 furnace heating element

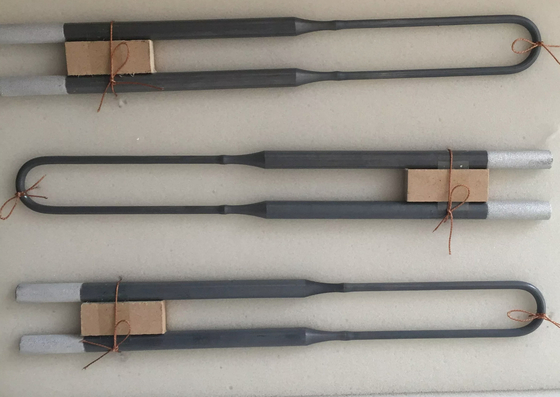

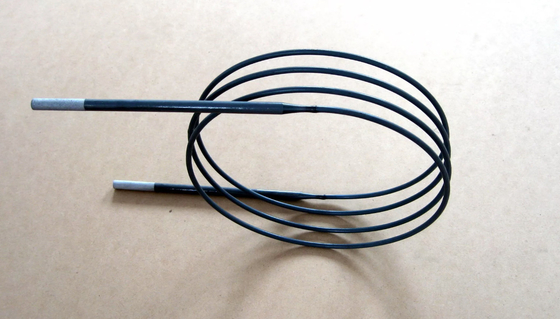

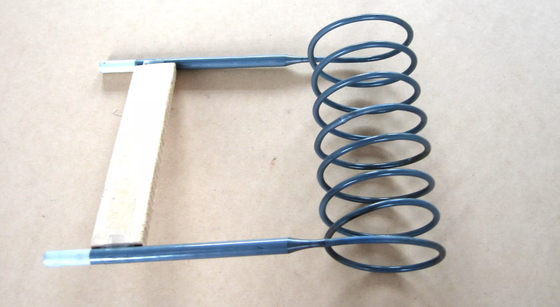

MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.





Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .

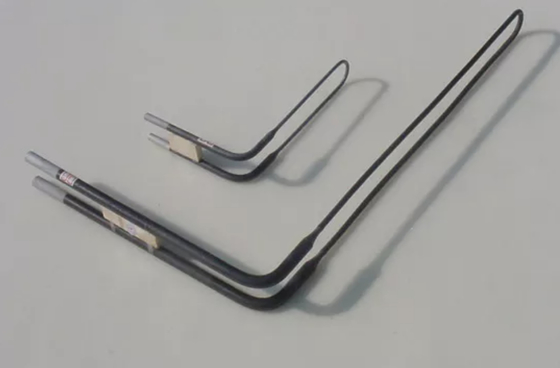

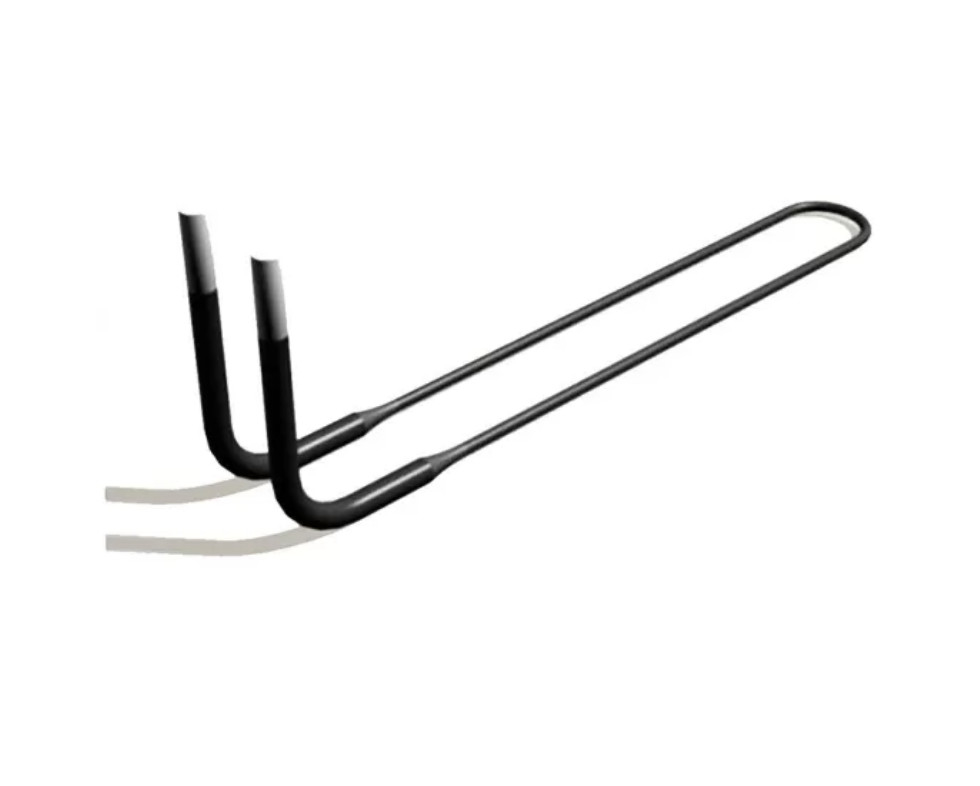

4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .



Physical property of Silicon Molybdenum Rod :

Physical properties
Volume Density Bend Strength Porosity Rate Water Absorption Hot Extensiblity
5.5-5.6g/cm³ 15-25kg/ cm2 7.4% 1.2% 4%



Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.



Max temperatures of MoSi2 Heating Element in Different Atmospheres

Atmosphere Max. element temperature
MS1700 MS1800
Air 1700℃ 1800℃
Nitrogen 1600℃ 1700℃
Argon, Helium 1600℃ 1700℃
Hydrogen 1100-1450℃ 1100-1450℃
N2/H2 95/5% 1250-1600℃ 1250-1600℃
Applications

Heat treatment

Forging

Sintering

Glass melting

Refining

Radiant tubes

Laboratory furnaces

Testing equipment

High temperature sintering production furnaces



Molybdenum silicon heating elements specification:

Diameter of hot
zone
Diameter of cold
zone
Length of hot
zone
Length of cold
zone
Terminal center distance
3mm
6mm
80-300mm
80-500mm
25mm
4mm
9mm
80-350mm
80-500mm
25mm
6mm
12mm
80-800mm
80-1000mm
25-60mm
7mm
12mm
80-800mm
80-1000mm
25-60mm
9mm
18mm
100-1200mm
100-2500mm
40-80mm
12mm
24mm
100-1500mm
100-1500mm
40-100mm



How to order ?

Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 0
220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 1
220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 2
220 volt High Temp Molybdenum Disilicide Heater Mosi2 Furnace Heating Element 3
