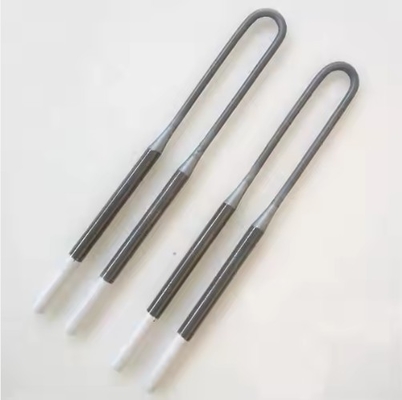

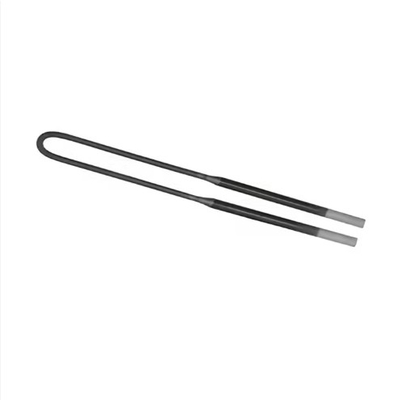

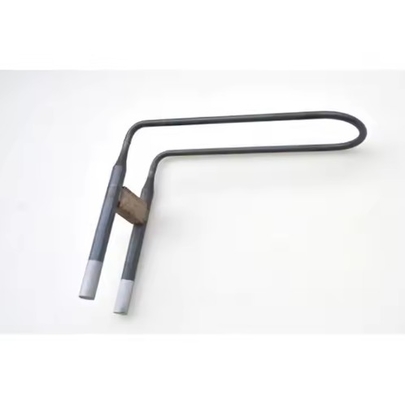

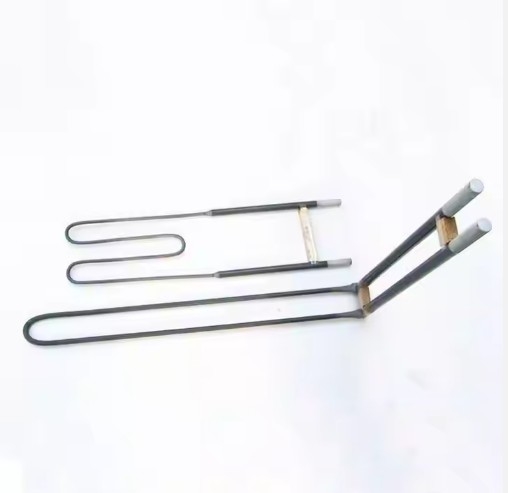

1500C High Temperature U Shape Mosi2 Heat Element

Large Image : 1500C High Temperature U Shape Mosi2 Heat Element

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD9/piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	5-20work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

1500C High Temperature U Shape Mosi2 Heat Element

Description

Feature:	High Temperature	Type:	U Shape (U Type)
Temperature:	700-1500c	Working Lifetime:	10000h
Usage:	Electrical Furnace	Length:	As Requested
Product Type:	Electric Heating Elements	Max Max Temperature:	1500c
Highlight:	U Shape Mosi2 Heat Element , High Temperature Mosi2 Heat Element , 1500C Mosi2 Heat Element

Products Description

Mosi2 heating element is a type of resistance heating element composed of high purity molybdenum disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands
oxidation. In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as a heating element in high-temperature furnaces for a variety of industries including ceramics, magnets,glass, metallurgy, refractory, and many others.

Specification

Material Grade	1600/1700/1800/1850
Shape	U, I, W, UL
Hot zone length	100-300mm
Cold end length	150-300mm
Diameter	6-9mm

Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

Types

Application:
