Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming

Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming
Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming

Large Image :  Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming

Product Details:
Place of Origin: CN
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

Optical Fiber Production MoSi2 Heating Elements in Melting Holding Refining Forming

Description
MAX TEMPERATURE:: 1700°C / 1800°C DIAMETER:: 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm
COOLING ZONE LENGTH:: 80 - 1500mm SHAPE:: Special Shape
HEATING ZONE LENGTH:: 80 - 1500mm MOLYBDENUM PURITY:: 99.9% High Purity
Highlight:

Fiber Production MoSi2 Heating Elements

,

MoSi2 Heating Elements In Melting

,

MoSi2 Heating Elements In Refining

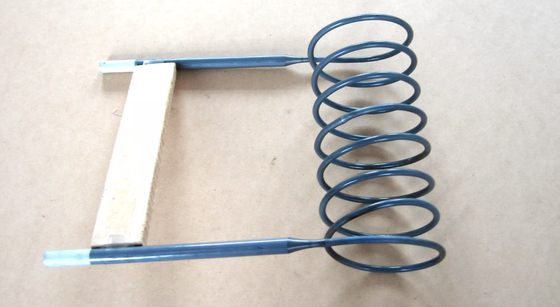

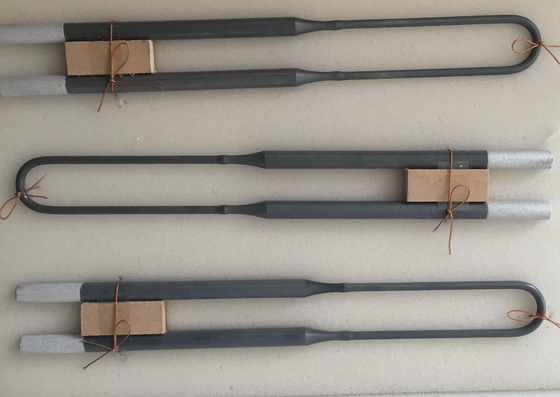

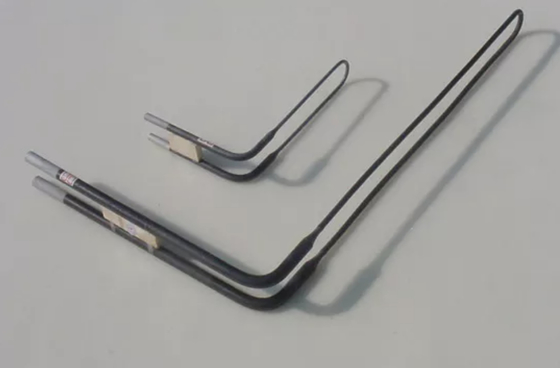

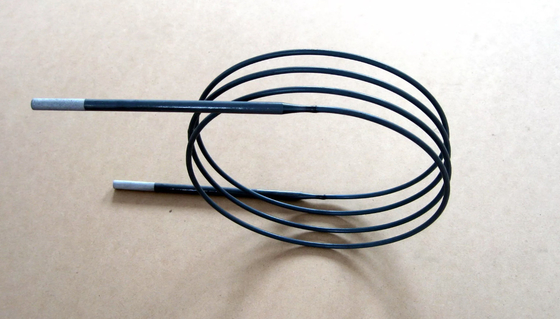

MoSi2 Heating elements for Melting, holding, refining, forming, display glass technologies, optical fiber production.



MoSi2 Heating Element introduction :



Molybdenum Disilicide (MoSi2) Heating Elements are used in electric furnaces to deliver heating at temperatures as high as 3,362ºF (1,850ºC). Used in production furnaces, laboratory equipment, glass melting and many other applications, these elements are available in a number of different configurations and available with custom design options to meet the specific needs of your facility or operations.





UNIQUE PROPERTIES

  • Moly-D elements may be used up to a surface temperature of 1800ºC (3270°F) in oxidizing atmospheres.
  • Long service life and ease of replacement contribute to high furnace utilization and low maintenance costs.
  • New and old elements can be used together and in series.
  • Can dissipate high power loading.
  • Can be used continuously or intermittently.
  • Provide rapid furnace temperature ramping.



GRADE

TYPE ZG-31

  • Maximum Element Temperature – 1700°C (3090°F)
  • General Applications — Most types of industrial furnaces for heat treating, forging, sintering, glass melting and refining, and for use in radiant tubes.

TYPE ZG-33

  • Maximum Element Temperature – 1800°C (3270°F)
  • General Applications – Laboratory furnaces, testing equipment, and high temperature sintering production furnaces.

TYPE ZG-34

  • Maximum Element Temperature – 1850°C (3360°F)
  • General Applications – Laboratory furnaces, testing equipment, and high temperature sintering production furnaces up to 1800°C furnace temperature.

TYPE ZG-RT

  • Maximum Element Temperature – 1800°C (3370°F)
  • General Applications – Dental zirconia sintering with no discoloration, Rapid thermal cycling applications.

TYPE ZG-XLR

  • Maximum Element Temperature – 1700°C (3090°F)
  • General Applications – Furnaces with dry nitrogen, oxygen deficient, or oxygen enriched atmospheres.

DELIVERY:

Most sizes and types can be shipped 2 to 3 weeks after receipt of an order. Emergency shipments for 3/6 and 6/12 can usually be made in 2 to 3 days.



ACCESSORIES:

Straps and holders are available for all sizes.



AVAILABLE SIZES



TABLE B

SIZES AVAILABLE

Size

Heating Zone Le Ø

Terminal End Lu Ø

Standard “A” Distance



mm

in

mm

in

mm

in

3/6

3

.12

6

.24

25

.98

4/9

4

.16

9

.35

25

.98

6/12

6

.24

12

.47

50

1.97

9/18

9

.35

18

.71

60

2.36

12/24

12

.47

24

.94

80

3.15


Elements are available in the following grades and diameters:
ZG-31 – maximum element temperature 1700ºC (3090ºF) 3/6, 4/9, 6/12, 9/18, 12/24
ZG-33 – maximum element temperature 1800ºC (3270ºF) 3/6, 4/9, 6/12, 9/18, 12/24
ZG-34 – maximum element temperature 1850ºC (3360ºF) 3/6, 4/9, 6/12, 9/18 (9/12/18)
ZG-RT – maximum element temperature 1800ºC (3270ºF) 3/6, 4/9, 6/12
ZG-XLR – maximum element temperature 1700ºC (3090ºF) 6/12, 9/18, 12/24
