High Temperature SiC Heating Elements, 1400°C Silicon Carbide Rod

Application:

Widely used in various high-temperature 1400°C Max. electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass, metallurgy, and machinery, etc.

We have 6 different types of SiC heating rod, available in a wide variety of standard sizes and geometries. The rod can also be in customized designs to meet your specific heating needs of various processes and equipment.

SiC Heating Elements Features:

• Selecting high purity green SiC powder, to ensure the best foundation for top quality.
• SiC rod is extruded by 500T press machine, to ensure high-density uniform through the whole length.
• Excellent resistance rate between heat zone and cold zone, to avoid over-temperature of cold zone to damage the furnace body.
• Special technology to spread a protect film on the surface of the heating zone, which enhances the Antioxidant property evidently and lengthens the service life.

Types:

• Normal straight rod (GD type)
• Dumbbell (GC type)
• U shape (U type)

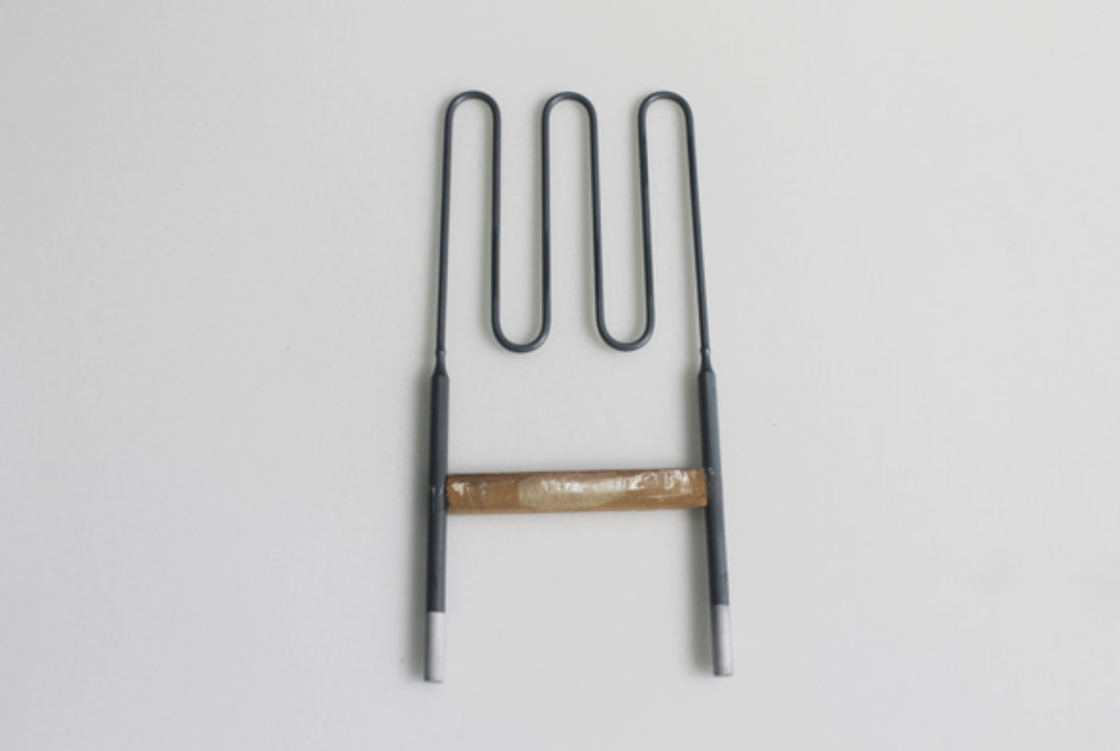

• W shape (W type)
• Single spiral (SD type)
• Double spiral (SG type)

Please confirm the following data before order:

1. Type
2. Diameter: OD
3. Heating zone length: HZ
4. Cooling zone length: CZ
5. Total length: OL
6. Resistance (if you have requirement)
7. Please confirm the central distance when you need U type and W type.
