Product Details:
|
MAX TEMPERATURE:: | 1700°C / 1800°C | USAGE: | Sintering Furnace |
---|---|---|---|
COOLING ZONE LENGTH:: | 80 - 1500mm | SHAPE:: | I U UL W WL Shape |
HEATING ZONE LENGTH:: | 80 - 1500mm | NAME: | MoSi2 Heating Elements |
High Light: | Sintering Furnace MoSi2 Heating Elements,WL Shape MoSi2 Heating Elements,UL SHAPE MoSi2 Heating Elements |

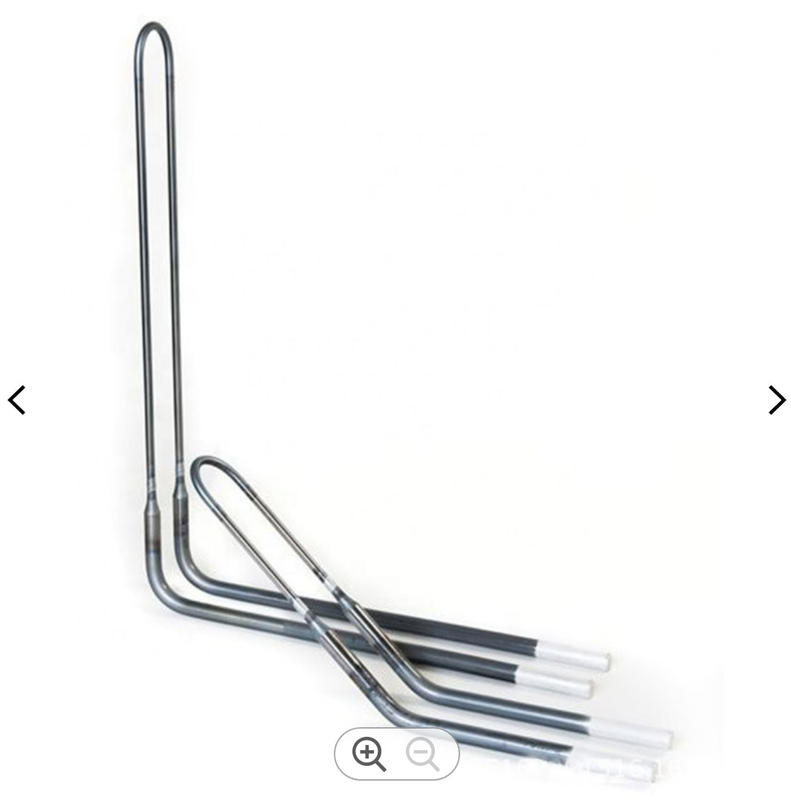

Sintering Furnace MoSi2 Heating Elements I U UL W WL Shape
MoSi2 Heating Elements is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. When the temperature of element is more than 1700°C,the MoSi2 Heating Elements must not be used in the temperature between 400°C and 700°C for a long time;
MoSi2 Heating Elements Parameters
* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
Physical property of Silicon Molybdenum Rod :
Physical properties | ||||
Volume Density | Bend Strength | Porosity Rate | Water Absorption | Hot Extensiblity |
5.5-5.6g/cm³ | 15-25kg/ cm2 | 7.4% | 1.2% | 4% |
Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.
Max temperatures of MoSi2 Heating Element in Different Atmospheres
Atmosphere | Max. element temperature | |
MS1700 | MS1800 | |
Air | 1700℃ | 1800℃ |
Nitrogen | 1600℃ | 1700℃ |
Argon, Helium | 1600℃ | 1700℃ |
Hydrogen | 1100-1450℃ | 1100-1450℃ |
N2/H2 95/5% | 1250-1600℃ | 1250-1600℃ |
Applications |
Heat treatment Forging Sintering Glass melting Refining Radiant tubes |
Laboratory furnaces Testing equipment High temperature sintering production furnaces |
Molybdenum silicon heating elements specification:
Material Grade | 1600/1700/1800/1850 |
Shape | U, I, W, UL |
Hot zone length | 100-300mm |
Cold end length | 150-300mm |
Diameter | 6-9mm |
Molybdenum Disilicide Heating Elements Details
* The applicable temperature is between 500-1700°C
* Max temperature 1800°C
* The element cannot be used for rather long time in 400-700°C
