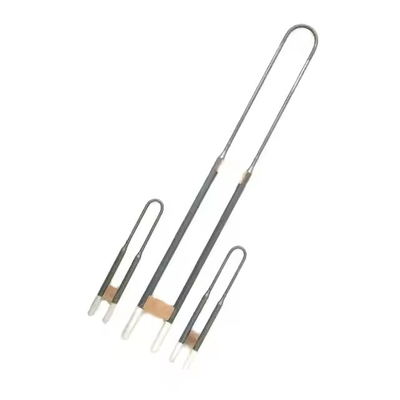

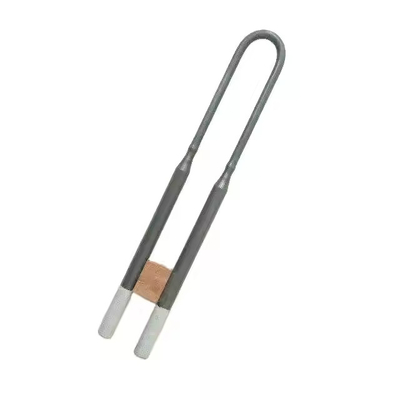

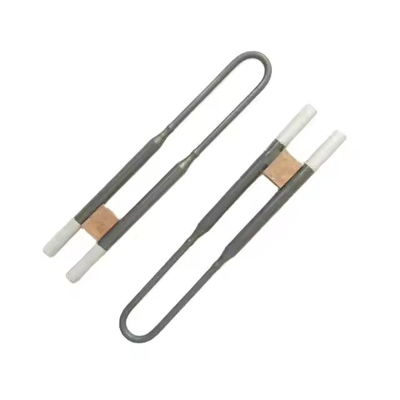

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace
1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace 1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace 1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace

Large Image :  1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD9/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace

Description
Highlight:

Electric Furnace MoSi2 Heating Element

,

1800c MoSi2 Heating Element

,

MoSi2 Heating Element U Type

Physicochemical property of elements:

1.Physical property



Volume density Bend Strength Vichers-hadness Porosity rate Water absortion Hot extensiblity
5.5-5.6 kg/cm³ 15-25kg/cm³ (HV)570kg/cm³ 7.4% 1.2% 4%



2.Chemical porperty

The element cannot be used for rather long time in 400-700 ℃,otherwise ,it will be atomized owing to the strong oxdizing action in low temperature.



3.The max temperature of elements in different atmosphere



Air 1700℃ 1800℃
Nitrogen 1600℃ 1700℃
Argon/Helium 1600℃ 1700℃
Hydrogen 1100-1450℃ 1100-1450℃
N2/H2 95/5% 1250-1600℃ 1250-1600℃
Application Area Most types of indurstial furnace for heat heatment , forgoing,sintering glass melting and refinin g and for use in radiant tubes. Laboratory furnaces ,testing equipment and high temperature sintering production furnace.

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace 0

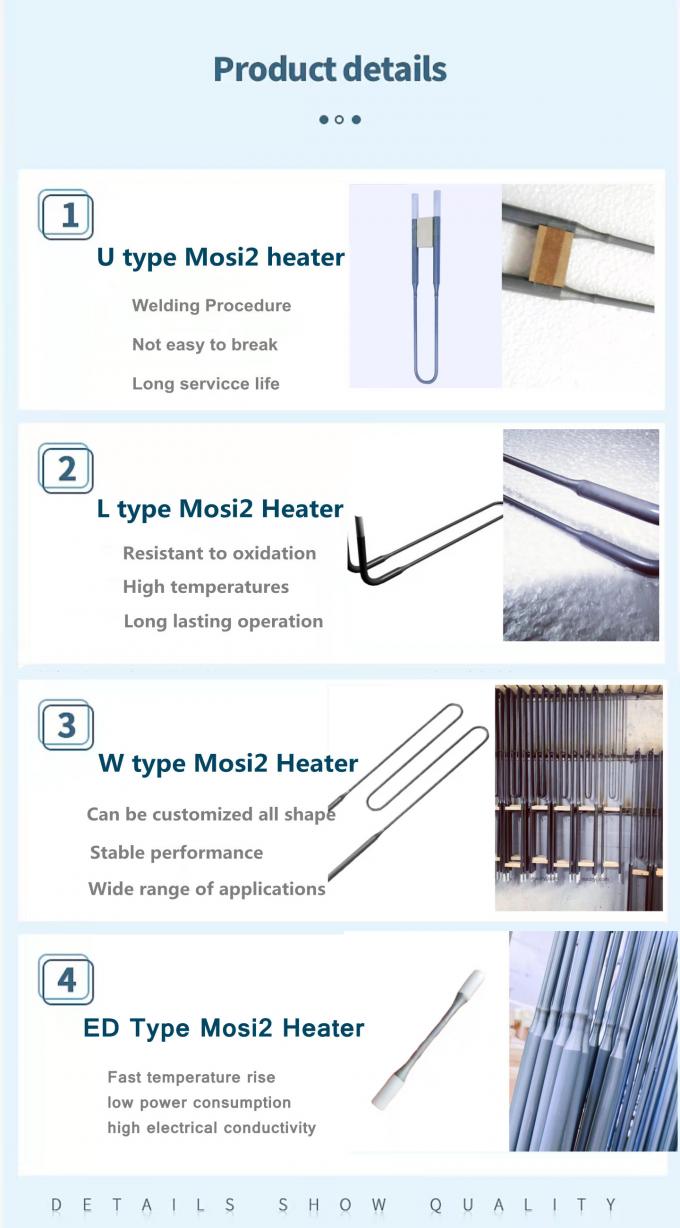

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace 1

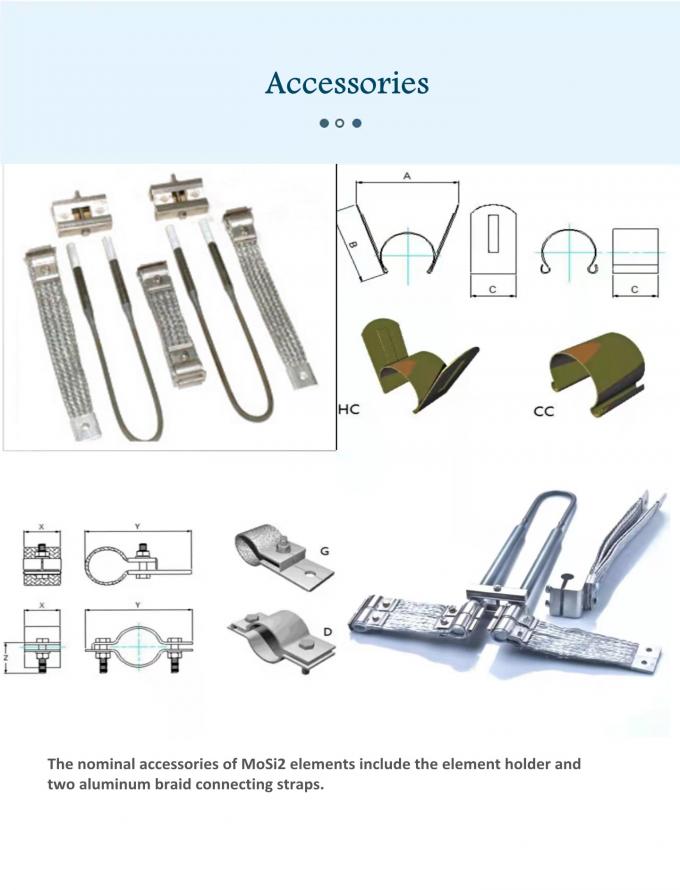

1800c U Type Mosi2 Molybdenum Disilicide Heating Element For Electric Furnace 2
Any question, please don’t hesitate to contact me online, by phone or email. Following is Business Card of our sales manager.

Quality first, reputation above all!!!
Our pleasure to work with you

Tag:

Furnace Molybdenum Disilicide Heating Element,

1700C MoSi2 Electric Heating Element,

Metallurgy Molybdenum Disilicide Heating Element
