MoSi2 Molybdenum Disilicide Heating Element With 1700 1800 1900 Grade

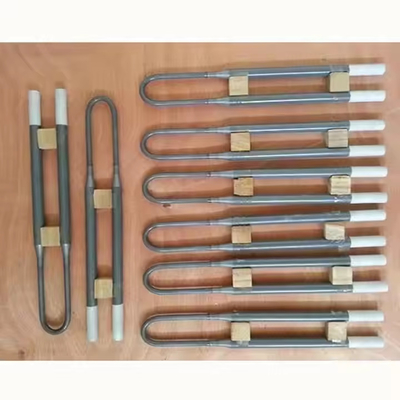

Large Image : MoSi2 Molybdenum Disilicide Heating Element With 1700 1800 1900 Grade

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD9/piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	5-20work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

MoSi2 Molybdenum Disilicide Heating Element With 1700 1800 1900 Grade

Description

Highlight:

1900 MoSi2 Molybdenum disilicide heating element

1800 MoSi2 Molybdenum disilicide heating element

1700 MoSi2 Molybdenum disilicide heating element

Product details

Dia 3/6 4/9 1800 1700 mosi2 heating elements heating element for zirconia sintering furnace

Molybdenum disilicide(MoSi2) heating element:
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.

In oxidizing atmosphere, its Max temperature can reach 1800 c and its applicable temperature is 500-1700. It can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory etc. the commercial name of our Mosi 2 heating element is KERONE Mosi 2 Heating Element.

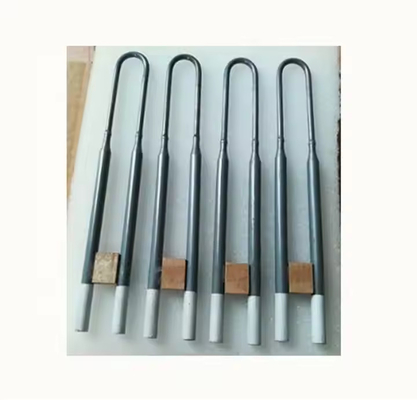

mosi2 heating element

1. According to temperature: 1700C and 1800C

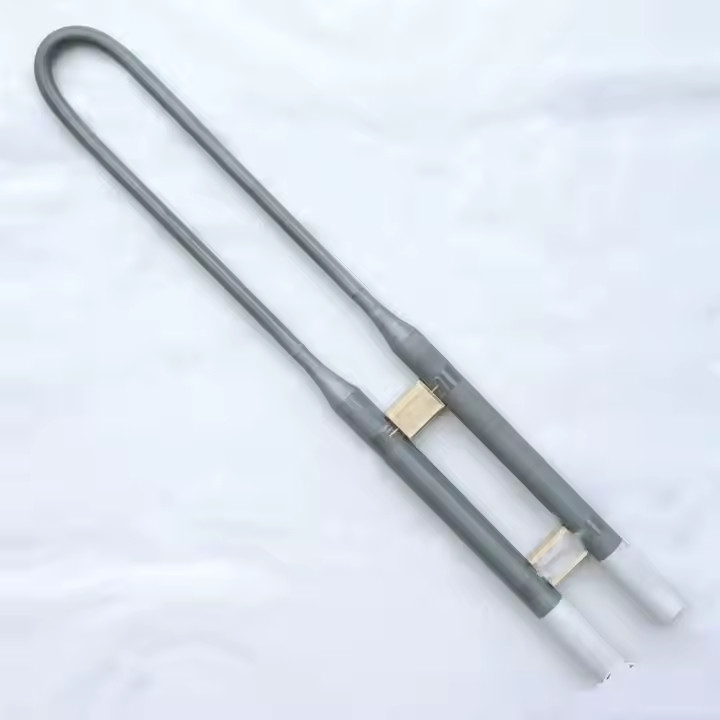

2. According to Shape: U, W, I, U type L shape, WL, Spiral types.

mosi2 heating element standard size
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

Physics characters of mosi2 heating element

Bulk density	Bending strength	Hardness	Apparent porosity	Drawing water rate	Thermal elongation
5.6~5.8g/cm3	20MPa(20℃)	(hv)570kg/mm²	0.5~2.0%	0.5%	4%

Recommend surface load:

Furnace Temp(°c)	1400	1500	1600	1650	1700
Surface load of hot zone(W/cm²)	<18	<15	<12	<10	<8

Installation of mosi2 heating element

1)Vertically hanging
Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.

2) Support clamp
Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.

mosi2 heating element Application:

Item	name	distinction criterion	specification
Heating elements	1700 type	Element operating temperature 1700℃ is acceptable	Le Φ 6-12W type/U type/L type/all kinds of heating element
	1800 type	Element operating temperature 1800℃ is acceptable	Le Φ 6-12W type/U type/L type/all kinds of heating element
	1800J type	Element operating temperature≥1800℃	Le Φ 3-12W type
	1800T type	Element operating temperature≤1800℃	Le Φ 3-12W type U type

Small furnace (power100KW)		Large furnace(Power 100-500KW)
Furnace temperature	Voltage	furnace temperature℃	Voltage
20-150	1/3 Operating voltage	1/3 Operating voltage200-300	1/3 Operating voltage
150-500	2/3 Operating voltage	300-700	2/3 Operating voltage
500-operating temperature	The Whole-Operating Voltage	700-Operating temperature	The Whole-Operating Voltage
