1800°C Muffle Furnace Silicon Grade MoSi2 Molybdenum Rods Heating Element For Steel Melting Furnace

Large Image : 1800°C Muffle Furnace Silicon Grade MoSi2 Molybdenum Rods Heating Element For Steel Melting Furnace

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1/pcs
Price:	5/usd/pcs
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	3workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/pcs/month

Contact Now

1800°C Muffle Furnace Silicon Grade MoSi2 Molybdenum Rods Heating Element For Steel Melting Furnace

Description

Highlight:

1800°C Molybdenum Rods Heating Element

Silicon Grade Molybdenum Rods Heating Element

Product information

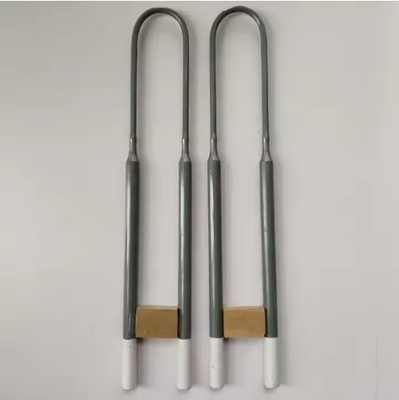

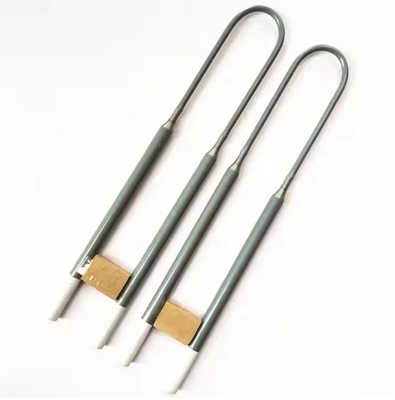

MoSi2 heating element is a type of resistance heating element composed of high purity Molybdenum Disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands oxidation. In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as heating elements in high temperature furnaces for a variety of industries including ceramics, magnets, glass, metallurgy, refractory and many others. We named our MoSi2 heating elements asRisesun Super.

Risesun Super 1850 is the latest super quality element researched and developed by us, which adopts high purity Molybdenum and Silicon powder and with whole process anti-oxidation. Risesun Super 1850 has the advantages of higher service temperature, and higher tensile strength. Its maximum service temperature is 1830℃ and it can sustain furnace temperatures of 1750℃.

Application

It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass metallurgy and machinery etc. Our main products include silicon carbide heating element and Mosi2 heating element with various types such as U type, three phase type, equal diameter type, and other heterotypic.

Features

1 .withstands as high as 1800°C
2 .high strength and excellent shock resistance
3 .heat source is free of noise and air pollution
4 .anti-oxidization, anti- corrosion
5 .easy to installation and maintenance

Product details

Physical properties
Volume Density	Bend Strength	Porosity	Water Absortion	Hot Extensiblity
5.5-5.6g/cm³	15-25kg/c㎡	7.4%	1.2%	4%

Atmosphere	Max. element temperature
	1700 Grade	1800 Grade
Air	1700℃	1800℃
Nitrogen	1600℃	1700℃
Argon, Helium	1600℃	1700℃
Hydrogen	1100-1450℃	1100-1450℃
N2/H2 95/5%	1250-1600℃	1250-1600℃
General applications	Heat treatment furnace Forging Sintering Glass melting Refing Radiant tubes	Laboratory furnaces Testing equipment High temperature sintering production furnace

Recommend surface load
Furnace Temperature (℃)	1400	1500	1600	1650	1700
Surface load of Hot zone(w/c㎡)	＜18	＜15	＜12	＜10	＜8

Pay Attention To The Point

1. Mosi2 heating element is hard and fragile, during the transportation anc installation should be careful, keep in a dry and ventilated place to prevent aluminum spray out of the digestion and deliquescence,

2. Mosi2 heating element should not be used within the range of 400-700 ℃ long time ,or else ,the element will due to low temperature oxidation effect and become powder,

3. The resistance of Mosi2 heating element generally does not change with the length of usage time, so the new and used components can be mixed. 1800°C Muffle Furnace Silicon Grade MoSi2 Molybdenum Rods Heating Element For Steel Melting Furnace 6

Order Guidance

The Specifications And Dimension Mark Of MoSi2 Heating Element

DI: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
