Zirconia Heating Element Mosi2 1800 U Shape Heating Element

Zirconia Heating Element Mosi2 1800 U Shape Heating Element
Zirconia Heating Element Mosi2 1800 U Shape Heating Element Zirconia Heating Element Mosi2 1800 U Shape Heating Element Zirconia Heating Element Mosi2 1800 U Shape Heating Element

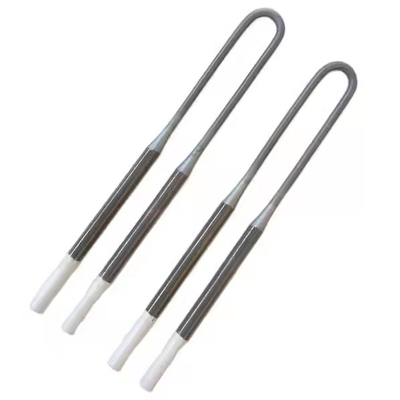

Large Image :  Zirconia Heating Element Mosi2 1800 U Shape Heating Element

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD9/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Zirconia Heating Element Mosi2 1800 U Shape Heating Element

Description
Highlight:

Zirconia U Shape Heating Element

,

1800 U Shape Heating Element

,

Mosi2 U Shape Heating Element

Product Description
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 0

MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Products Show

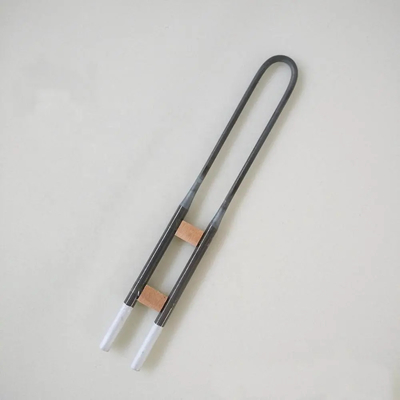

Zirconia Heating Element Mosi2 1800 U Shape Heating Element 1

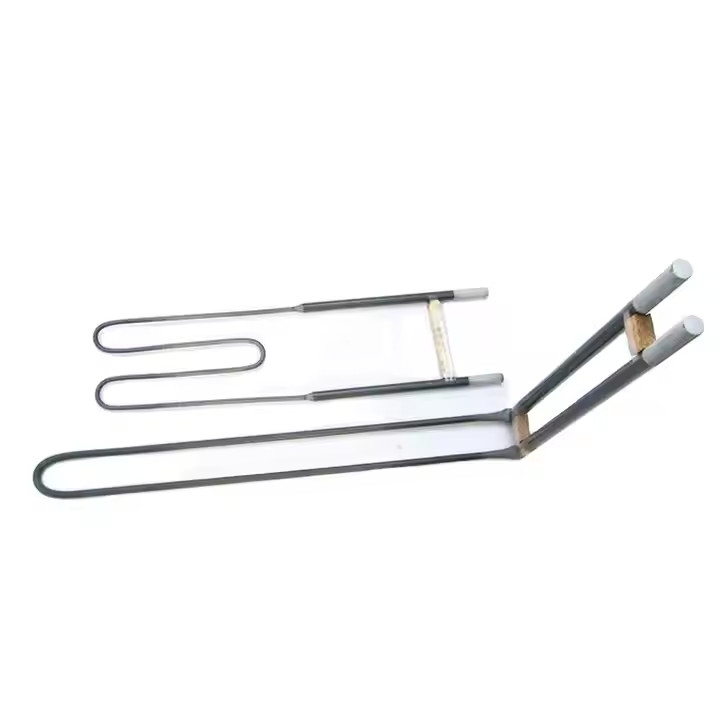

Zirconia Heating Element Mosi2 1800 U Shape Heating Element 2
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 3
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 4
Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .
4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
Molybdenum silicon heating elements specification:
Diameter of hot
zone
Diameter of cold
zone
Length of hot
zone
Length of cold
zone
Terminal center distance
3mm
6mm
80-300mm
80-500mm
25mm
4mm
9mm
80-350mm
80-500mm
25mm
6mm
12mm
80-800mm
80-1000mm
25-60mm
7mm
12mm
80-800mm
80-1000mm
25-60mm
9mm
18mm
100-1200mm
100-2500mm
40-80mm
12mm
24mm
100-1500mm
100-1500mm
40-100mm
How to order ?
Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 5
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 6
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 7
Zirconia Heating Element Mosi2 1800 U Shape Heating Element 8
