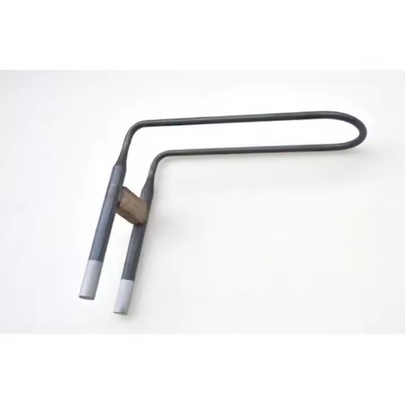

Lab Electric Heating Resistor U Type MoSi2 Heater Resistance Molybdenum Disilicide Heating Elements

Large Image : Lab Electric Heating Resistor U Type MoSi2 Heater Resistance Molybdenum Disilicide Heating Elements

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1/pcs
Price:	5/usd/pcs
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	3workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/pcs/month

Contact Now

Lab Electric Heating Resistor U Type MoSi2 Heater Resistance Molybdenum Disilicide Heating Elements

Description

Highlight:

Lab MoSi2 heater resistance

U type MoSi2 heater resistance

Electric MoSi2 heater resistance

Products Description

1700c 1800c Industrial high temperature MoSi2 rod heating elements molybdenum heater for electric furnace is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Products Show

Molybdenum disilicide MoSi2 rod heating element size:

1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .

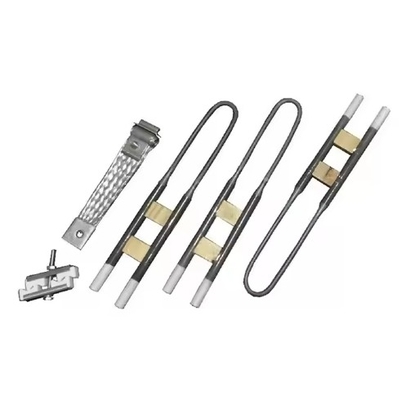

4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .

Molybdenum silicon heating elements specification
Diameter of hot zone	Diameter of cold zone	Length of hot zone	Length of cold zone	Terminal center diatance
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-1500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm

How to order ?

1.d = the diameter of hot zone
2.c = the diameter of cold zone
3.Le = the length of hot zone
4.Lu = the length of cold zone

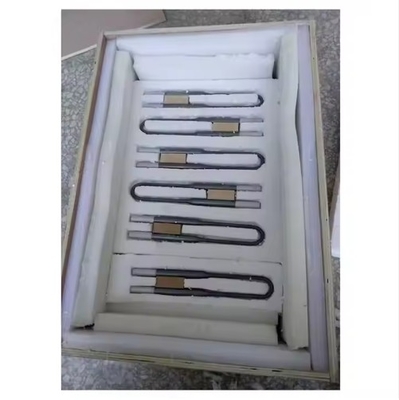

Package & Delivery

FAQ

1. Q: Are you factory or trading company? A: Yes, we are factory and have 8 production lines.

2. Q: Can we use our own forwarder to transport the products?
A: Yes, sure. We can ship to them.

3. Q: Can we print our own brand?
A: Yes, of course. Will be our pleasure to be one your good OEM manufacture in China to meet your requirements.

4. Q: What's the payment method?
A: T/T, 30% deposit before production, the balance before delivery.
Also, we accept go through on alibaba, west union.

5. Q: How to place an order?
A: Please kindly send us your order by email, we will confirm the PI with you. We wish to get your email address, phone number,
destination, transportation way. And product information, size, quantity, logo, etc.
Anyway, please contact us directly by email or online message.
