1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Large Image : 1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD5/piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	5-20work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Description

Feature:	High Temperature	Oxidation Resistance:	High
Type:	U Shape (U Type)	Working Lifetime:	10000h
Usage:	Electrical Furnace	Length:	As Requested
Product Type:	Electric Heating Elements	Max Max Temperature:	1400c
Corrosion Resistance:	Excellent
Highlight:	Furnace Silicon Carbide Rod Heating Element , Carbide Rod Heating Element For Kiln

Products Description

Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.

Specification

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
12	100-400	100-350	300-1100	0.8-5.8
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0

Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

Details Images

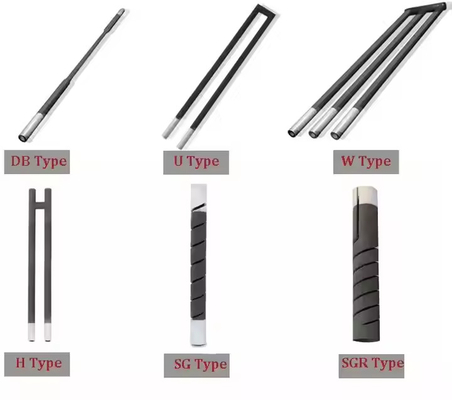

Types

Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)
