Silicon Carbide Heating Element Sic Heaters Rod High Temperature

Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature Silicon Carbide Heating Element Sic Heaters Rod High Temperature Silicon Carbide Heating Element Sic Heaters Rod High Temperature

Large Image :  Silicon Carbide Heating Element Sic Heaters Rod High Temperature

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Silicon Carbide Heating Element Sic Heaters Rod High Temperature

Description
Feature: High Temperature Oxidation Resistance: High
Type: U Shape (U Type) OEM: Yes
Usage: Electrical Furnace Length: As Requested
Product Type: Electric Heating Elements
Highlight:

Sic heaters rod

,

sic heaters rod

,

Silicon carbide Heating element

Product Description

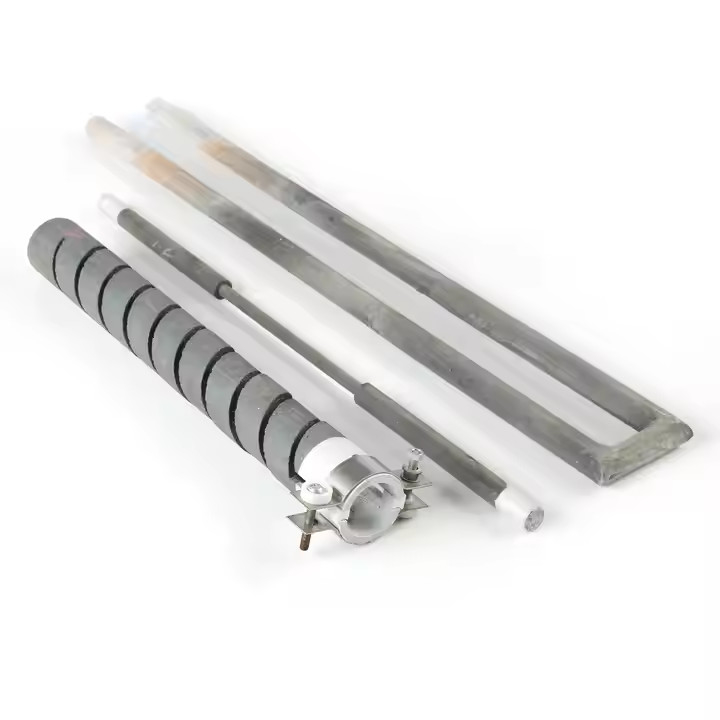

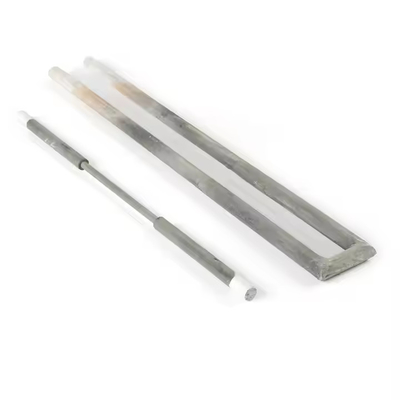

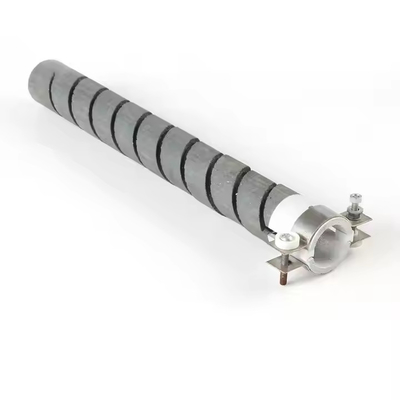

Single spiral SiC silicon carbide heater element

Silicon Carbide (SiC) heating elements is a non-metal electric heating element made from SiC as its main raw materials. It has some specific properties, such as low expansion coefficient, little deformation, stable chemical property, long service life, easy installation and maintenance, etc.
Usage: Silicon Carbide (SiC) heating elements can usually make use for furnace which temperature from 600-1600. It can be directly used in an air atmosphere without any protection atmosphere. It is extensively used in the fields of metallurgy, ceramics, glass,
machinery, analysis test, semiconductor, science & research and so on.
Item
Data
SiC content
>75%
Si3N4 content
>22%
Fe2O3
<0.5%
Bulk density
2.6-2.7g/cm3
Apparent porosity
<16%
Cold Crushing strength
150Mpa
Rupture strength at 1200°C
>50Mpa
Thermal conductivity at 800°C
>18w/m.k
Thermal conductivity at 1200°C
>14w/m.k
Thermal expansion coefficient
<4.7x10-6/°C
Size can be customized according to requirements
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 0
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 1
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 2
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 3
Packaging & Shipping
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 4
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 5
Silicon Carbide Heating Element Sic Heaters Rod High Temperature 6
