1700°C MoSi2 heating elements introduction:
1).1700°C MoSi2 electric heating elements is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere.
2).1700C MoSi2 electric heating elements has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 heating element is 1800°C.

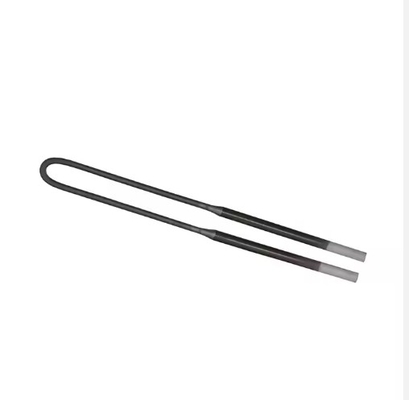

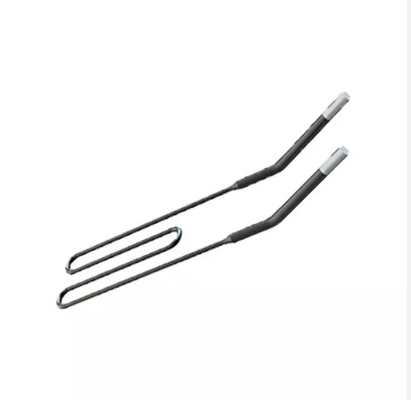

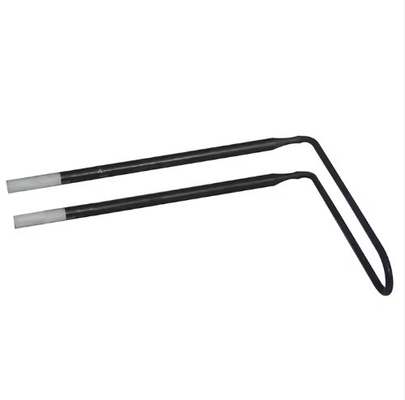

3).1700°C silicon molybdenum MoSi2 rod electric heating elements shape: U-type, W-type, right-angle as well as circular type.
4).The general temperature of 1700°C MoSi2 heating elements is from 1300°C to 1800°C, which is universally applied to the field of metallurgy, glass, ceramics, magnetic matrials, refractory materials, crystals, electron devices and kiln etc. It is the ideal heating element of high temperature anealing.
5).1700°C MoSi2 electric heating elements type:U type 1700 6/12mm ;U type1700 9/18mm;W type 1700 6/12mm ; W type 1700 9/18mm; U type 1800 3/6mm; U type 1800 6/12mm; U type 1800 9/18mm
Operation temperature of MoSi2 heating elements:
| Atmosphere |
1700 Type |
1800 Type |
| Air |
1700 |
1800 |
| N2 |
1600 |
1700 |
| He |
1600 |
1700 |
| -80°C Dry H2 |
1150 |
1150 |
| -20°C Wet H2 |
1450 |
1450 |
| 10%CO2, 50%CO, 15%H2 |
1600 |
1700 |
| 40%CO2, 20%CO |
1400 |
1450 |
| Cracked and Partially Burnt Ammnia |
1400 |
1450 |
Small silicon molybdenum MoSi2 rod electric heating elements:
How to install 1700°C MoSi2 electric heating elements:
connect belt connect clip
heating elements installation installation complete
FEATURES of MoSi2 heating elements:
Standard sizes
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

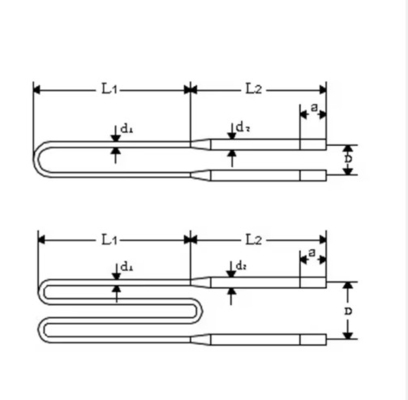

When you place order, please tell us following data:
d = the diameter of hot zone
c = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone
A = the distance between two terminals
Delivery time :
During 7 days after getting your payment .
Our Services:
· Sutong can load container at Qingdao, Tianjin, Shanghai etc.
· Sutong provide shipping method: Courier service, Air transport, Sea transport
· Sutong accept order: Full container cargo load, LCL and sample order
· Sutong provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc
· Sutong has complete quality control system and after-sale service
Payment :
L/C T/T, West union,etc.
