Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory

Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory

Large Image :  Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month
Contact Now

Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory

Description
Highlight:

High Temperature Sic Heating Elements

,

Sic Heating Elements For Dental furnace

Hot sale High Temperature Sic Heating Elements For Dental furnace
Products Description
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 0
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 1
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 2
Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.
Specification
Outer Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.
Details Images
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 3
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 4

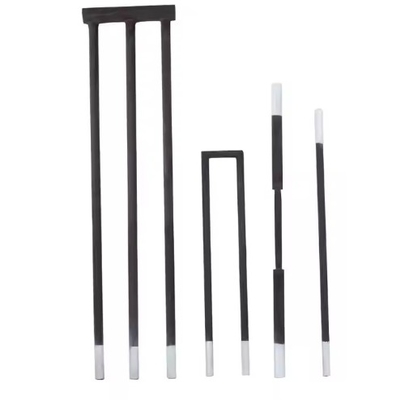

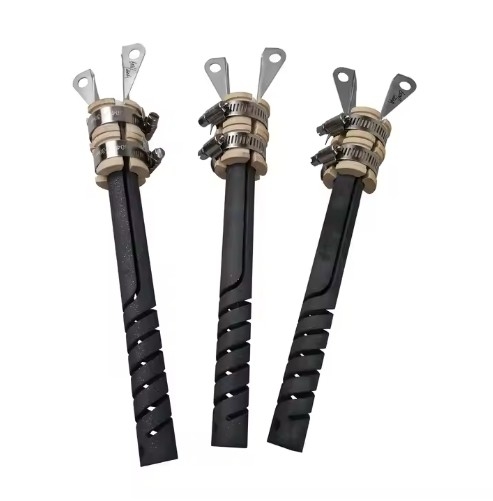

Types
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 5
Silicon Carbide Heating Elements Industrial Furnace Sic Heater for Refractory 6
Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)
OUR SERVICE

1.Timely response


Timely response to your inquiry,multiple choice recommendations based on your demand,quickly respond mails and provide solutions


2.Professional Services


Provide high temperature solutions and professionals construction services according to our experience.
Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;Warm and considerable after-sale service


3.Strict quality control


Arrange production on time and control quality strictly.


4.Shorter delivery time


Book the earliest vessel or plane to guarantee the delivery time.

FAQ

1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.

2.Shall you offer samples?
Yes, we can offer the client samples in stock.

3.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.

4. What is the delivery time?
15-25 days after receiving the deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is about 10-25days.

5. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
