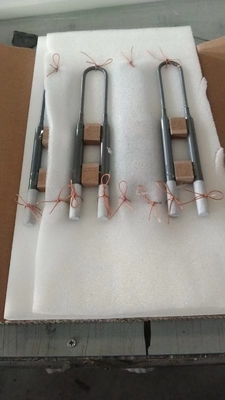

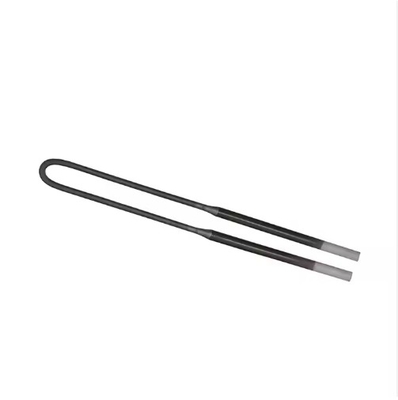

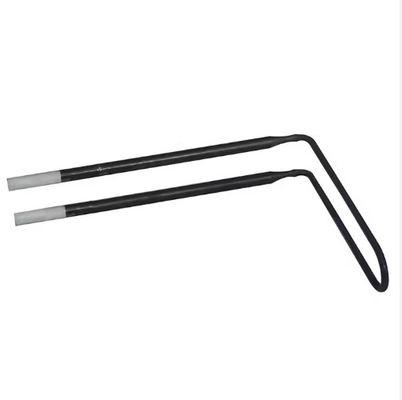

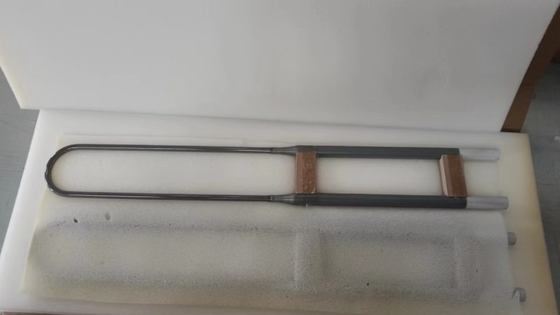

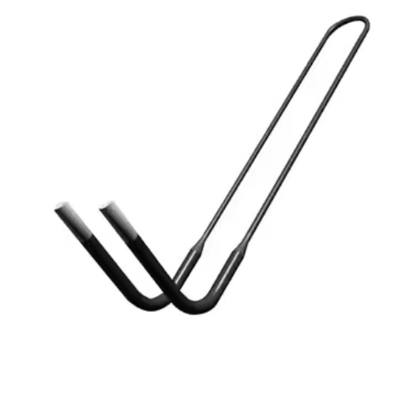

U Type Mosi2 Electric Ceramic Resistant Heating Elements For Dental Oven

Product descriptions:

Mosi2 heating element is a type of resistance heating element composed of high purity molybdenum disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands oxidation.

In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as a heating element in high-temperature furnaces for a variety of industries including ceramics, magnets,glass, metallurgy, refractory, and many others.

Standard diameter of MoSi2 Heater:

M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

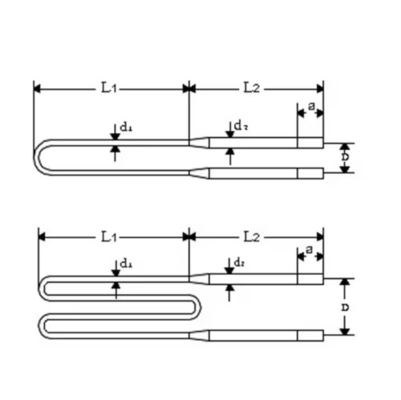

When you inquiry, Please inform us:

1.Outer diameter (OD)
2. Length of Hot zone (HZ)
3.Cold end length(CZ)
4.Length of Overall (OL)
5.Shank Space(A)
6.Vottage and Wattage
7.Quantity
