High Temperature 1800 Degree Mosi2 Heater For Furnace Mosi2 Heating Element

Large Image : High Temperature 1800 Degree Mosi2 Heater For Furnace Mosi2 Heating Element

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD9/piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	5-20work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

High Temperature 1800 Degree Mosi2 Heater For Furnace Mosi2 Heating Element

Description

Molybdenum Purity:	99.9% High Purity	Surface:	Smooth
Goods:	Mosi2 Heater	Application:	High Temperature Oven
Special Size:	Can Be Designed	Grade:	1700C, 1800C
Oxidation Resistance:	High	Classification:	Industry Heating Equipments
Diameter:	3/6/9/12/18/24mm	Bend Strength:	15-25kg/cm2
Hot Zone:	100-1000mm	Operating Temperatures:	Up To 1800°C
Voltage:	220V/380V	Type:	U Shape (U Type)
Porosity:	7.4%
Highlight:	mosi2 heater for furnace , mosi2 heating element price , 1800 degree mosi2 heater

Product Description

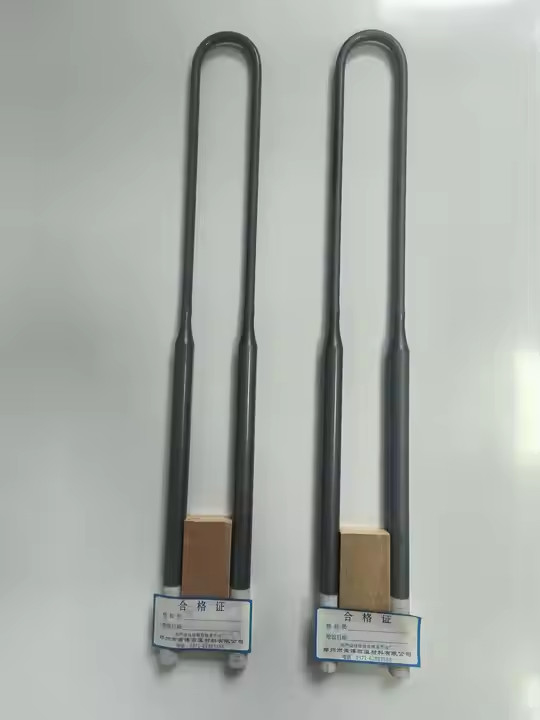

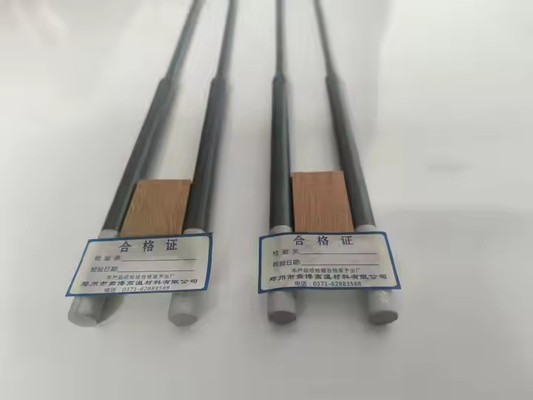

MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Products Show

Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .

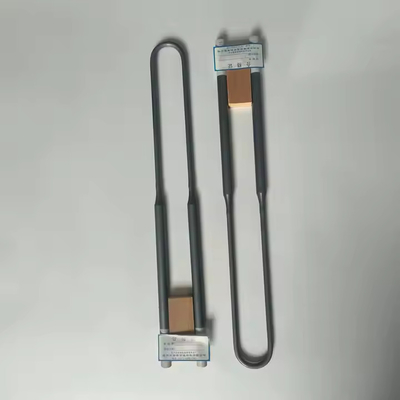

4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .

Molybdenum silicon heating elements specification:

Diameter of hot zone	Diameter of cold zone	Length of hot zone	Length of cold zone	Terminal center distance
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-2500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm

How to order ?

Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
