Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln
Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Large Image :  Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month
Contact Now

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Description
Highlight:

Industrial Sic Heater

,

Long Lifespan Sic Heater

,

Furnace Kiln Sic Heater

Product descriptions from the supplier

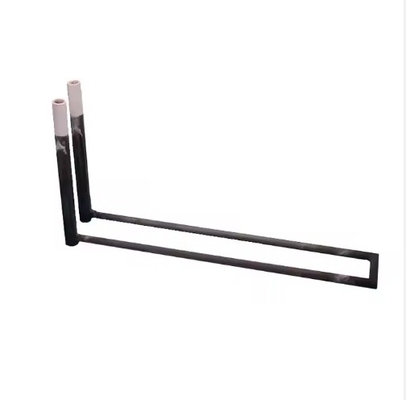

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 0
Product Description
Silicon Carbide Rod Description
1,Silicon carbide heating element is one type of ceramic heating elements,which use six-party high purity green SiC powder as the main raw material.Silicon is recrystallized under 2200C high temperature to form finished materials.The using temperature up to 1450C under oxidation atmosphere,and constant working life up to 2000 hours.It is widely used in various high temperature electric furnaces and othe electric heating devices,such as in the industries of magnet,ceramics,powder metallurgy,glass,metallurgy and machinery,etc.
2,Protech silicon carbide SiC heater element is a kind of nonmetal high temperature electric heating element.It is made of selected super quality green silicon carbide as main material,which is made into blank,silicide under high temperature and re-crystallized. Max temperature 1600 deg C.
3 ,Because of silicon carbide use to the high temperature, high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rising, long life, high temperature deformation is small, convenient maintenance and installation, etc. and good chemical stability.And automation control system supporting, get accurate constant temperature, and can according to the needs of the production process of automatic temperature adjustment by the curve. The use of silicon carbide heating is convenient, safe and reliable.

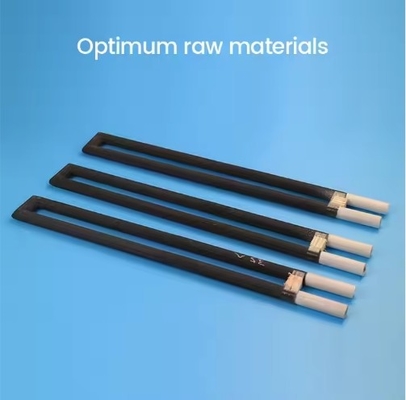

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 1

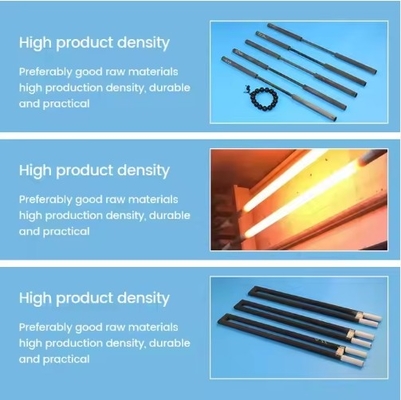

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 2

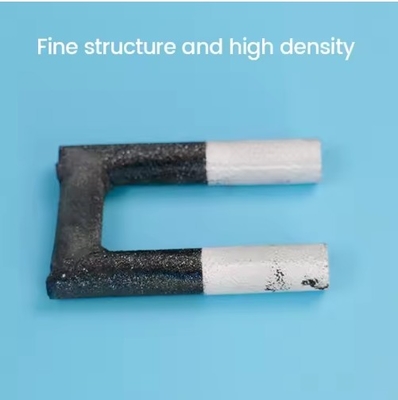

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 3

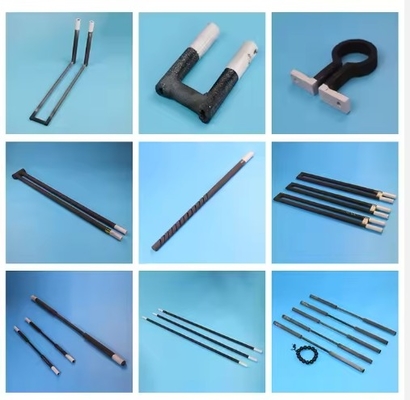

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 4

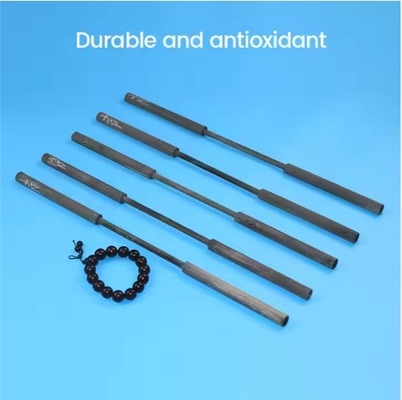

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 5
Diameter
Length of hot zone
Length of cold zone
Overall length
Range of resistance
8mm
100-300mm
60-200mm
240-700mm
2.1-8.6 ohms
12mm
100-400mm
100-350mm
300-1100mm
0.8-5.8 ohms
14mm
100-500mm
150-350mm
400-1200
0.7-5.6 ohms
16mm
200-600mm
200-350mm
600-1300
0.7-4.4 ohms
18mm
200-800mm
200-400mm
600-1600
0.7-5.8 ohms
20mm
200-800mm
250-600mm
700-2000mm
0.6-6.0 ohms
25mm
200-1200mm
250-700mm
700-2600mm
0.4-5.0 ohms
30mm
300-2000mm
250-800mm
800-3600mm
0.4-4.0 ohms
35mm
400-2000mm
250-800mm
900-3600mm
0.5-3.6 ohms
40mm
500-2700mm
250-800mm
1000-4300mm
0.5-3.4 ohms
45mm
500-3000mm
250-750mm
1000-4500mm
0.3-3.0 ohms
50mm
600-2500mm
300-750mm
1200-4000mm
0.3-2.5 ohms
54mm
600-2500mm
300-750mm
1200-4000mm
0.3-3.0 ohms
Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln 6
