U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace

U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace

Large Image :  U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Delivery Time: 3workdays
Contact Now

U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace

Description
Highlight:

Electric Furnace Sic Heating Element

,

High Temperature Sic Heating Element

,

U W I Sic Heating Element

Products Description
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 0
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 1
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 2
Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.
Specification
Outer Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

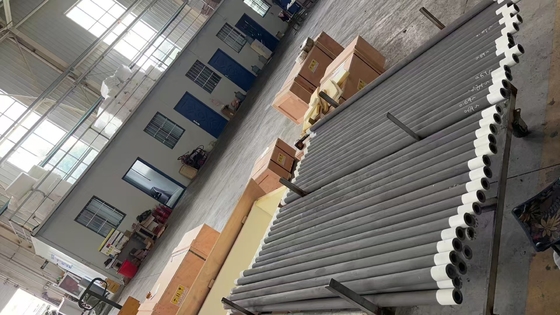

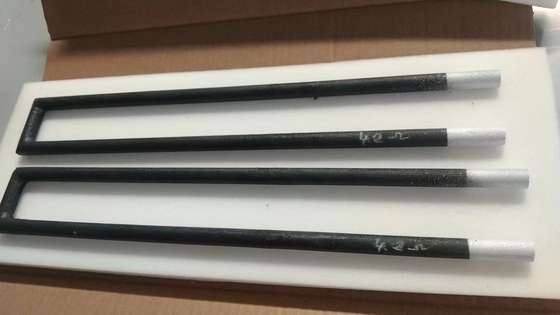

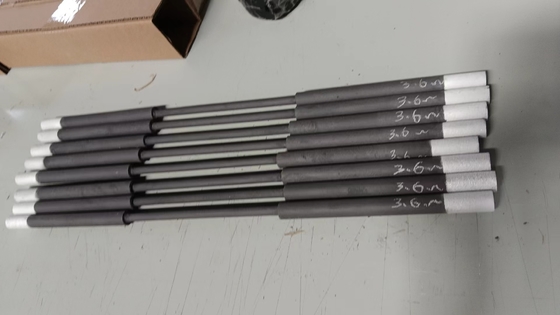

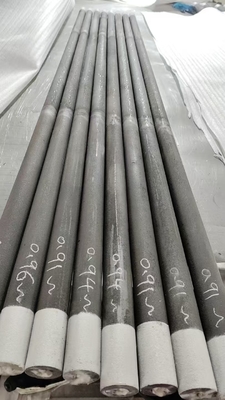

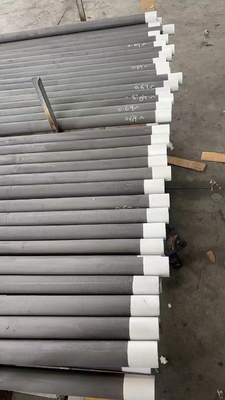

Details Images
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 3
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 4

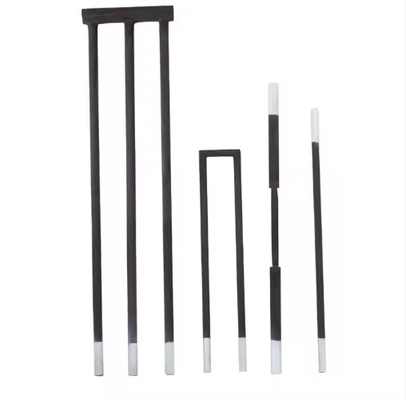

Types
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 5
U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace 6
Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)
