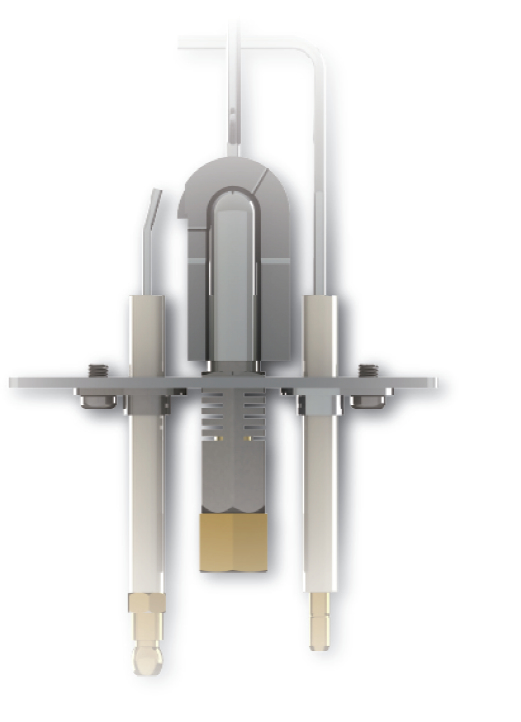

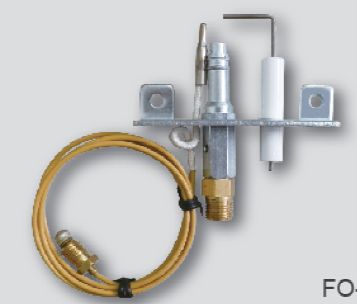

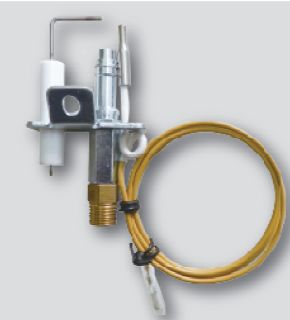

Introduction to ODS

1. Working principle: It uses the thermoelectric component of the pilot flame to generate thermoelectric potential that drives the gas valve (solenoid valve). When the oxygen content in the space where the appliance is located is low (<17%~19%), causing the small flame of the pilot light to have a temperature below approximately 400°C, the thermoelectric potential provided is insufficient to keep the gas valve open, thereby cutting off the gas supply to ensure personal safety.

2. Function: Provides automatic ignition for the stove and oxygen deficiency protection.3. Gas source types: Natural gas, liquefied gas.4. Output potential: >12MV.5. Nozzle: Stainless steel, ceramic, copper.6. The company has multiple imported fully automatic nozzle processing equipment, capable of achieving a minimum aperture of Φ0.15 ± 0.0015.

Quality control:
