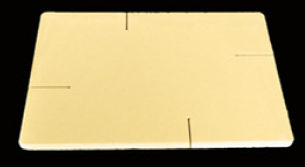

Sandwich-type kiln shelf

Sandwich-type Kiln Shelf —— Lightweight, High-Strength Composite Refractory Batts for Energy-Efficient Firing

In high-temperature industrial kilns, traditional solid refractory shelves suffer from high thermal mass, slow heating/cooling rates, and heavy weight, leading to excessive energy consumption and sagging under heavy loads. The Sandwich-type Kiln Shelf features an advanced composite structure—typically comprising dense, wear-resistant outer skin layers bonding a lightweight, thermal-shock-resistant hollow or porous core matrix. This engineered architecture drastically reduces furniture weight while enhancing flexural strength, thermal shock resistance, and thermal efficiency.

Structural Innovation & Mechanics

The multi-layer composite construction operates on structural sandwich theory to maximize load-carrying capacity while minimizing dead weight:

• Outer Skin Layers: Made of high-density silicon carbide (SiC), cordierite-mullite, or high-alumina compositions to provide superior bending resistance, oxidation protection, and smooth contact surfaces.

• Core Layer Matrix: Formulated with lightweight porous refractory materials, honeycomb channels, or hollow micro-spheres to reduce total mass by 30% to 50% while insulating heat transfer through the shelf depth.

Core Performance Advantages

1. Significant Weight Reduction: Reduces kiln car dead-weight by up to 30% ~ 50% compared to solid shelves, lowering labor intensity for kiln operators and significantly reducing energy consumption per firing cycle.

2. Superior Load-Bearing & Creep Resistance: Optimized structural section modulus provides high flexural strength ($MOR$), minimizing thermal sagging, deformation, or cracking over long-term high-temperature exposure.

3. Rapid Heating & Energy Efficiency: Lower thermal mass allows for faster thermal response, enabling shorter firing cycle times (fast-firing) and substantial reductions in natural gas or electrical power consumption.

4. Exceptional Thermal Shock Resistance: The multi-layer interface acts as a thermal stress relief buffer, preventing crack propagation during rapid heating and cooling cycles.

Applications Across Firing Processes
